Optical

Fluting Test 4.0

Balaguer Rolls launches the most advanced Optical Fluting Test to date.

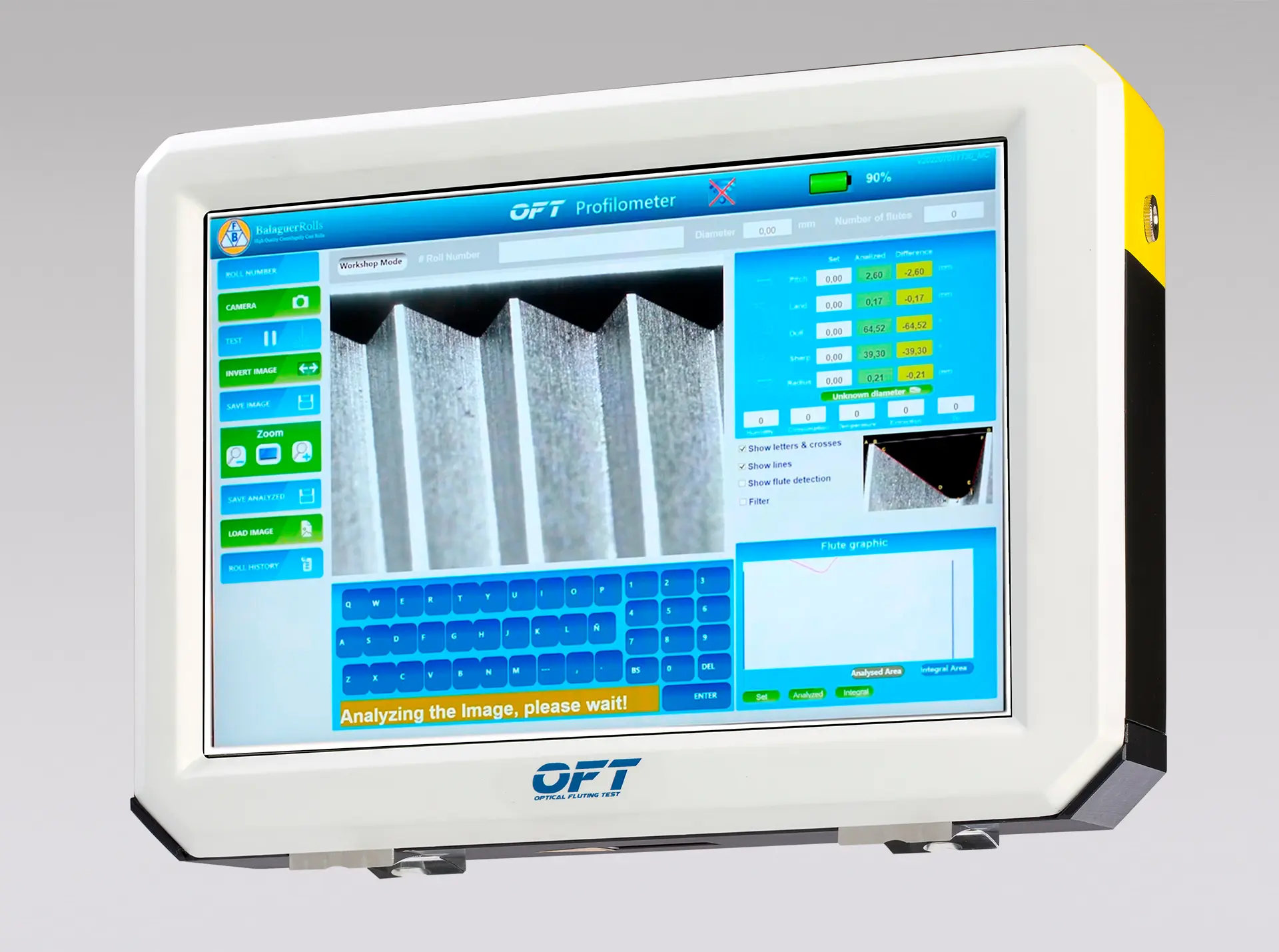

The new Optical Fluting Test 4.0 is the latest version of the revolutionary Optical Fluting Test measurement device. This new version breaks with the established with improvements that expand the benefits for millers.

The new OFT 4.0 is a totally autonomous device that does not need a computer to perform the measurements, as instead, the device makes it easier for the operator to make any query about the roll. With an improved algorithm that makes the analysis of wearout faster and more accurate, the new OFT 4.0 has a larger screen for a more intuitive use and a history of the rolls analyzed to retrieve the theoretical values of the roll automatically.

Watch full video
Balaguer Rolls lanza el Optical Fluting Test más avanzado hasta la fecha

Features OFT

Dispositivo de medición | Optical FLUTING TEST 4.0 | Balaguer Rolls

Measuring device

It allows us to verify quickly and accurately the state of the flutes in the roll.

Parámetros de estriado | Optical FLUTING TEST 4.0 | Balaguer Rolls

Fluting parameters

With a ±2.2µ accuracy in dimensional measurements and a ±0.01 accuracy in angle measurements can be obtained.

Optical Fluting Test | Optical FLUTING TEST 4.0 | Balaguer Rolls

Optical Fluting Test

Enables the operator to measure the following elements of a roll profile: pitch, land, dull angle, sharp angle and roll wear percentage.

Alertas | Optical FLUTING TEST 4.0 | Balaguer Rolls

Alerts

If any measurement exceeds the tolerances allowed, the system will give the miller a warning.

Seguro e intuitivo | Optical FLUTING TEST 4.0 | Balaguer Rolls

Safe and easy

To use and transport and much more accurate than other existing devices such as magnifying glass or profilometer.

Características de la máquina Optical Fluting Test de Balaguer Rolls

New features

Nuevas mejoras sobre la Optical Fluting Test 4.0 de Balaguer Rolls

Fully autonomus device

No laptop needed. Just by pressing the button the wear out is calculated.

Nuevas mejoras sobre la Optical Fluting Test 4.0 de Balaguer Rolls

Faster algorith

Improved and more precise wear out analysis.

Nuevas mejoras sobre la Optical Fluting Test 4.0 de Balaguer Rolls

Automatic contour detection

Effortless placement of measuring points.

Nuevas mejoras sobre la Optical Fluting Test 4.0 de Balaguer Rolls

Multiple shoot

Multiple pictures are taken at once for optimal image resolution.

Nuevas mejoras sobre la Optical Fluting Test 4.0 de Balaguer Rolls

Automatic recovery of theoretical data

When entering a roll, if it has already been analyzed, all the theoretical data is automatically loaded, which avoids having to enter it again.

Nuevas mejoras sobre la Optical Fluting Test 4.0 de Balaguer Rolls

Roll history display

When a cylinder number is entered, the history of all measurements made on that roll automatically appears.

Nuevas mejoras sobre la Optical Fluting Test 4.0 de Balaguer Rolls

Excellent accuracy

Excellent accuracy in all types of flutes.

Nuevo folleto Optical Fluting Test 4.0 | Balaguer Rolls

Download OFT 4.0 catalogue

Download
