Our

services

Balaguer Rolls provides high quality services for milling industry, including sandblasting, regrinding, re-fluting and fluting services.

Our advanced facilities and our qualified staff guarantee that our sandblasting, regrinding, re-fluting and fluting services are adapted to each client’s needs. We offer personalised solutions.

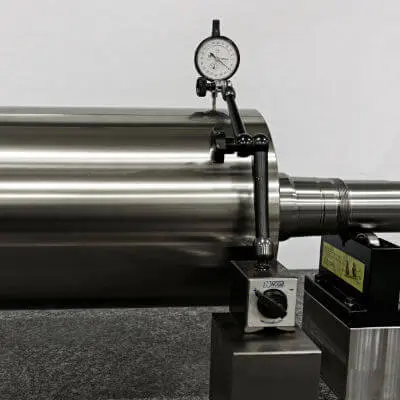

Measurements and analisys

Medición y análisis de los cilindros | Balaguer Rolls

Heat treatments and roll refurbishment

Sandblasting service

Mateado | Balaguer Rolls

In our sandblasting area we get rolls from 150mm to 812mm. With these rolls we are able to meet our clients’ needs for an optimal extraction in the oil and milling industry. This, together with the applied cambering and roughness requirements, allow us to offer the best sandblasted rolls available in the market.

Roughness under requirement.

Sandblasting service up to 812mm (32’)x2150mm (84’).

Fluting service

Balaguer Rolls has a unique fluting section in the world, where we get the perfect flute, which is also controlled by our “Optical Fluting Test” system. An optical equipment capable of measuring accurately without needing to contact the rolls.

Any fluting profile.

Fluting service up to 812mm (32’)x2150mm (84’).

Grinding service

Rectificado | Balaguer Rolls

Our exclusive high-accurate roll grinding room became the most advanced in the world once again. Temperature remains stable from 20 to 22ºC, making easy the measurement of very accurate dimensions and very narrow tolerance. Accurate grinding rolls are specially valued in the chocolate, biscuit and coffee areas.

Re-grinding of the roll to correct the roll geometry and the surface finishing.

Offering all types of roll grinding.

  • Cambering.
  • Finishing of the roll surface.
  • Repair of chamfer.
  • Grinding service up to 812mm (32’)x2150mm (84’).

Technical consulting

Asesoramiento técnico | Balaguer Rolls

We offer clients a comprehensive consulting service for the milling area, by doing a complete analysis and offering the optimal solution that each client requires. Our more than 100-years experience guarantees the diagnosis, the application and the modification of the existing lines.

  • Roll modernizations.
  • Roll wear consultation.
  • Roll compositions.
  • Roll configurations.
  • Roll technical development.

Optical Fluting Test

The Optical Fluting Test is the last achievement of Balaguer Rolls R&D Department. It is a three-dimensional, compact and portable system capable of quickly measuring without needing to contact the rolls. Moreover, it allows for making an analysis of the fluting parameters with a 4 µm accuracy.

The information is shown enlarged in a 10.8-inch touchscreen and it is exported to the computer by Wifi or USB.

Icono aceite

Other Industries

Balaguer qualities
  • K00 480-530 HB
  • K36 ;510-550 HB
  • K70 540-580 HBK00 480-530 HB
  • K04 540-580 HB
  • K70 540-580 HB
  • BBR 380-450 HB
  • IBR-S 420-460 HB
  • IBR-H 460-510 HB
  • K58 470-50 HB
Rolls available 250-1200 mm
Length L ≤3000
Chill Depth Chill Depth Range from 8 to 50 mm

Balaguer Qualities

Rolls Avaliable

Length

Chill depth

Icono harina

Flour milling

KOO 480-530 HB K36 510-550 HB K12 550-600 HB

K01 420-470 HB K02 380-430HB CRONOS 350-430HB

220 – 300mm

L≤ 1500

Chill Depth Range from 8 to 50 mm

Icono piensos

Animal feed milling roll

KOO 480-530 HB K36 510-550 HB K12 550-600 HB K58 470-520HB

K70 540-580 HB IBR-S 460-510HB IBR-H 460-510 BBR 500-550 HB

150- 1200mm

L<3000 mm

Chill Depth Range from 8 to 50 mm

Icono aceite

Edible Oil Roll

CRACKING ROLLS KOO 480-530 HB K36 510-550 HB K70 540-580 HB

FLAKING ROLLS KOO 480-530 HB K70 540-580 HB IBR-S 460-510HB

IBR-H 460-510 BBR 500-550 HB

250 – 1200mm

L<3000 mm

Chill Depth Range from 8 to 50 mm

Icono cafe

Coffee Roll

KOO 480-530 HB K36 510-550 HB K12 550-600 HB K28 520-590HB

1500 – 306mm

 L≤1500 mm

Chill Depth Range from 8 to 50 mm

Icono chocolate

Chocolate Refiner roll

KOO 480-530 HB K04 540-580HB

300 – 500mm

 L≤3000 mm

Chill Depth Range from 8 to 50 mm

Icono malta

Mait Brewery Roll

KOO 480-530 HB K36 510-550 HB K12 550-600 HB K28 520-590HB

200-600 mm

 L≤2500 mm

Chill Depth Range from 8 to 50 mm

Icono galletas

Biscuit roll

KOO 480-530  K28 520-590HB

150 – 600mm

 L≤2500 mm

Chill Depth Range from 8 to 50 mm

Icono sal

Salt Roll

KOO 480-530 HB K36 510-550 HB K12 550-600 HB K28 520-590 HB

200 – 500mm

 L≤2000 mm

Chill Depth Range from 8 to 50 mm

Icono fertilizantes

Fertilizer roll

KOO 480-530 HB K36 510-550 HB K12 550-600 HB

K28 520-590 HB K70 540-580 HB

200-1200 mm

 L≤3000 mm

Chill Depth Range from 8 to 50 mm

Icono pintura

Paint rolls

KOO 480-530 HB K36 510-550 HB K12 550-600 HB

180-500mm

L≤2500mm

Chill Depth Range from 8 to 50 mm

Soap Rolls

KOO 480-530 HB K36 510-550 HB K12 550-600 HB K28 520-590 HB

200-500mm

L≤2500mm

Chill Depth Range from 8 to 50 mm

Other Industries

KOO 480-530 HB K36 510-550 HB K70 540-580 HB IBR-S 460-510HB

IBR-H 460-510 BBR 500-550 HB K58 470-520

150- 1200mm

L<3000 mm

Chill Depth Range from 8 to 50 mm

We use cookies to ensure that this page gives you the best experience and tracks your use to do analysis. If you continue without changing your settings, we’ll assume that you are happy to receive all cookies on this website cookies policy.

Icono sal

Salt

Balaguer qualities
  • K00 480-530 HB
  • K36 510 -550 HB
  • K12 550 -600 HB
  • K28 520 -590 HB
Rolls available 200-500 mm
Length L ≤2000
Chill Depth Chill Depth Range from 8 to 50 mm
Icono jabon

Soap

Balaguer qualities
  • K00 480-530 HB
  • K36 510-550 HB
  • K12 550-600 HB
  • k28 520-590 HB
Rolls available 200-500 mm
Length L ≤2500
Chill Depth Chill Depth Range from 8 to 50 mm
Icono pintura

Paint

Balaguer qualities
  • K00 480-530 HB
  • K36 510-550 HB
  • K12 550-600 HB
Rolls available 180-500 mm
Length L ≤2500
Chill Depth Chill Depth Range from 8 to 50 mm
Icono fertilizantes

Fertilizer

Balaguer qualities
  • K00 480-530 HB
  • K36 510-550 HB
  • K12 550-600 HB
  • K28 520-590 HB
  • K70 540-580 HB
Rolls available 200-1200 mm
Length L ≤3000
Chill Depth Chill Depth Range from 8 to 50 mm
Icono piensos

Animal feed

Balaguer qualities
  • K00 480-530 HB
  • K36 510-550 HB
  • K12 550-600 HB
  • K58 470-520 HB
  • IBR-S 420-460 HB
  • IBR-H 460-510 HB
Rolls available 150-1200 mm
Length L ≤3000
Chill Depth Chill Depth Range from 8 to 50 mm
Icono galletas

Biscuits

Balaguer qualities
  • K00 480-530 HB
  • K28 520-590 HB
Rolls available 150-600 mm
Length L ≤2500
Chill Depth Chill Depth Range from 8 to 50 mm
Icono malta

Malt brewery roll

Balaguer qualities
  • K00 480-530 HB
  • K36 510-550 HB
  • K12 550-600 HB
  • K28 520-590 HB
Rolls available 200-600 mm
Length L ≤2500
Chill Depth Chill Depth Range from 8 to 50 mm
Icono chocolate

Chocolate

Balaguer qualities
  • K00 480-530 HB
  • K04 540-580 HB
Rolls available 300-500 mm
Length L ≤3000
Chill Depth Chill Depth Range from 8 to 50 mm
Icono cafe

Coffee

Balaguer qualities
  • K00 480-530 HB
  • K36 510-550 HB
  • K12 550-600 HB
  • K28 520-590 HB
Rolls available 150-306 mm
Length L ≤1500
Chill Depth Chill Depth Range from 8 to 50 mm
Icono aceite

Oil roll

Balaguer qualities Cracking rolls
  • K00 480-530 HB
  • K36 510-550 HB
  • K70 540-580 HB
Flaking rolls
  • K00 480-530 HB
  • K04 540-580 HB
  • K70 540-580 HB
  • BBR 380-450 HB
  • IBR-S 420-460 HB
  • IBR-H 460-510 HB
Rolls available 250-1200 mm
Length L ≤3000
Chill Depth Chill Depth Range from 8 to 50 mm
Icono harina

Flour

Balaguer qualities
  • k00 480-530 HB
  • K36 510-550 HB
  • K12 550-600 HB
  • K01 420-470 HB
  • K02 380-430 HB
  • CRONOS (K06) 350-430 HB
Rolls available 220-300 mm
Length L ≤1500
Chill Depth Chill Depth Range from 8 to 50 mm
  Icono harina

Flour Milling

Icono piensos

Animal Feed milling roll

Icono aceite

Edible Oil roll

Icono cafe

Coffe roll

Icono chocolate

Chocolate refiner roll

Icono malta

Malt brewery roll

Icono galletas

Biscuit roll

Icono sal

Salt

Icono fertilizantes

Fertilizer roll

Icono pintura

Paints

Icono jabon

Soap roll

Balaguers qualities
  • k00 480-530 HB
  • K36 510-550 HB
  • K12 550-600 HB
  • K01 420-470 HB
  • K02 380-430 HB
  • CRONOS(K06) 350-430 HB
  • k00 480-530 HB
  • k36 510-550 HB
  • k12 550-600 HB
  • k58 470-520 HB
  • IBR-S 420-460HB
  • IBR-H460-510HB
 Cracking rolls
  • k00 480-530 HB
  • k36 510-550 HB
  • k12 550-600 HB
  • k28 520-590 HB
  • k00 480-530 HB
  • k04 540-580 HB
  • k00 480-530 HB
  • k36 510-550 HB
  • k12 550-600 HB
  • k28 520-590 HB
  • k00 480-530 HB
  • k28 520-590 HB
  • k00 480-530 HB
  • k36 510 -550 HB
  • k12 550 -600 HB
  • k28 520 -590 HB
  • k00 480-530 HB
  • k36 510-550 HB
  • k12 550-600 HB
  • k28 520-590 HB
  • k70 540-580 HB
  • k00 480-530 HB
  • k36 510-550 HB
  • k12 550-600 HB
  • k00 480-530 HB
  • k36 510-550 HB
  • k12 550 -600 HB
  • k28 520-590 HB
  • k00 480-530 HB
  • k36 510-550 HB
  • k70 540-580 HB
Flaking rolls
  • k00 480-530 HB
  • k70 540-580 HB
  • IBR-S 420-460HB
  • IBR-H 460-510HB
  • BBR 500-550 HB
Rolls available 220-300mm 150-812mm 250-812mm 150-306mm 300-500mm 200-600mm 150-600mm 200-500mm 200-812mm 180-500mm 200-500mm
Length L≤1500mm L<3000mm  L<3000mm L≤1500mm L≤3000mm L≤2500mm L≤2500mm L≤2000mm L≤3000mm L≤2500mm L≤2500mm
Chill Depth Chill Deph Range from 8 to 50 mm
